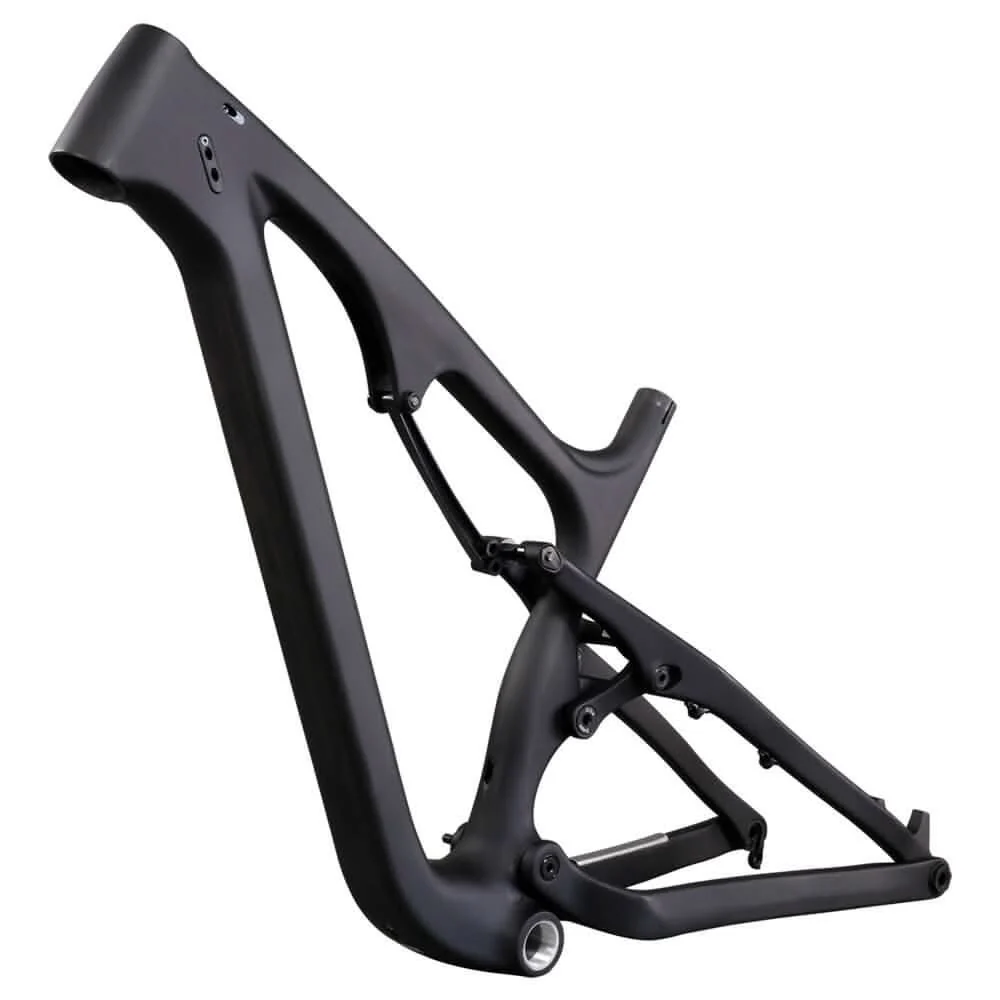

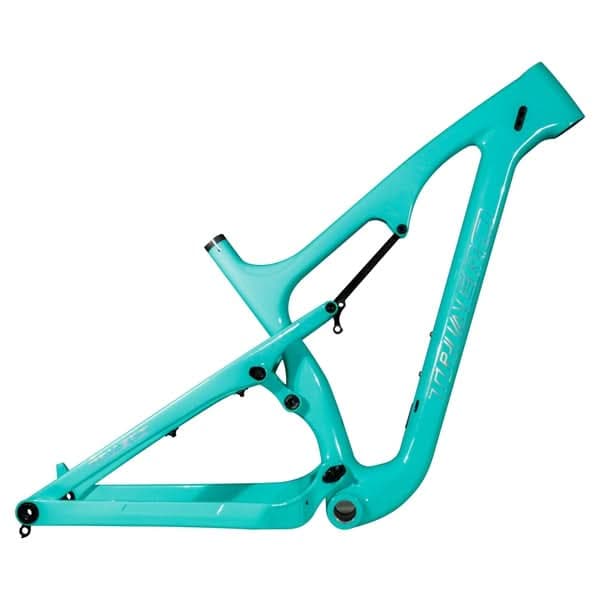

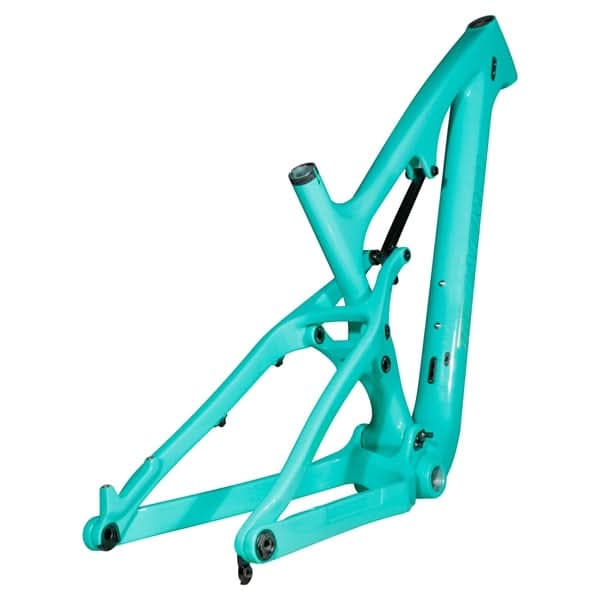

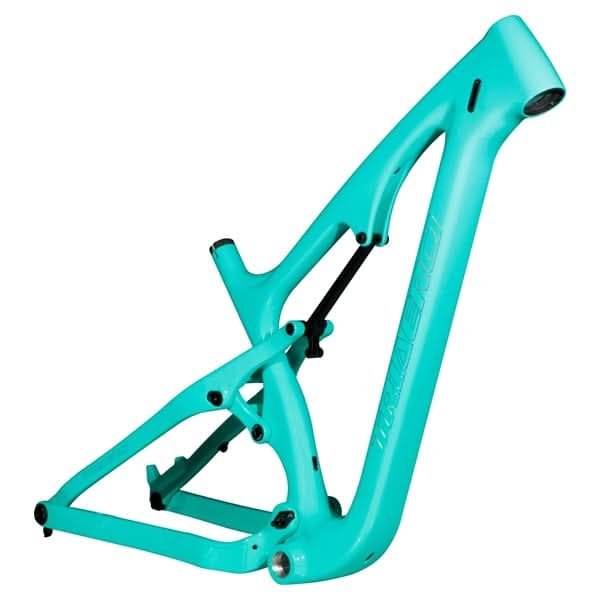

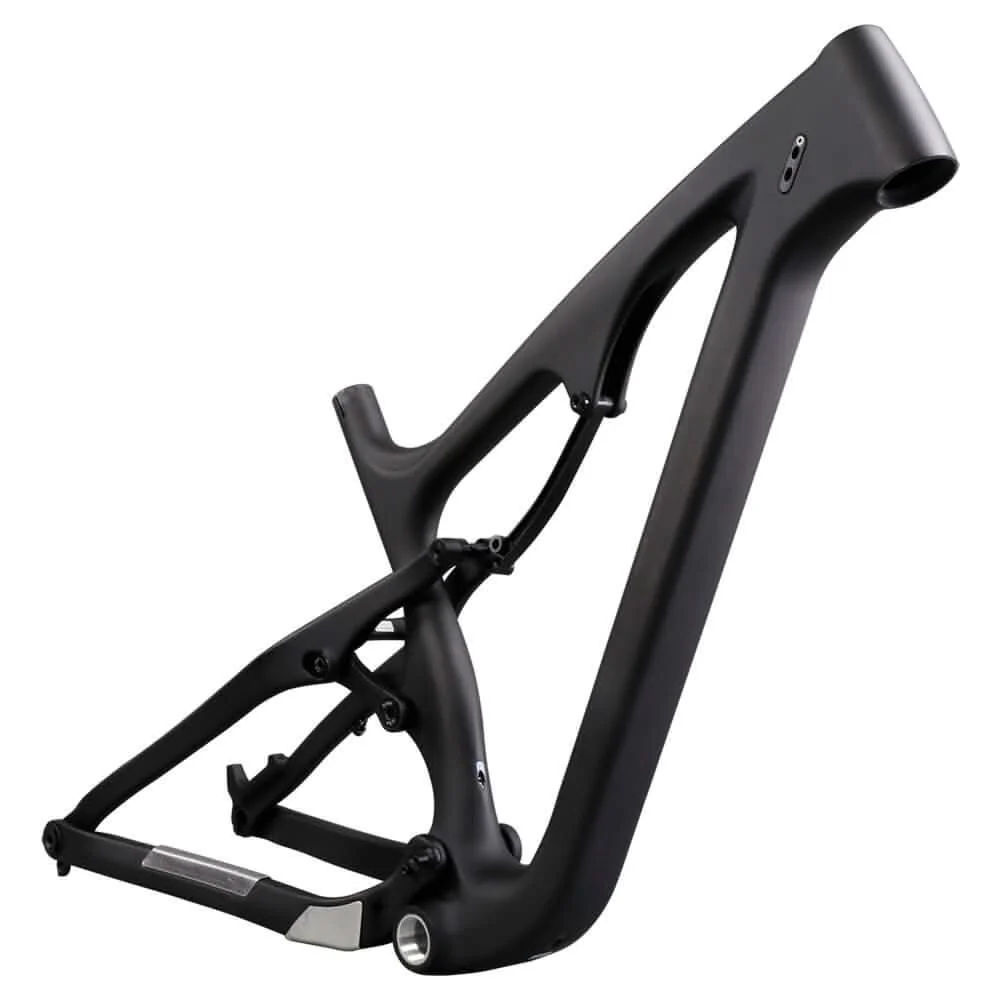

Full suspension fat bike frame SN04
Specification
| Type | Full suspension Fat bike frame |
| Material | 100% carbon fiber Toray T700 |
| Weave | UD Matt/Blue painting UD Glossy |
| Frame Weight | 2560g |
| Seatpost Size | 31.6mm |
| Seat clamp Size | 37mm |
| Frame Size | 16/18/20 inch |
| Headtube | Top 1-1/8",down 1- 1/2" |
| BB | BSA(120mm BB Shell) |
| Model | SN04 |
| Rear Spacing | 197mm |
| Disc Rotor Size | 160mm(front and rear) |
| Wheel & Tire Options |
26×3.8—4.8” on up to a 100mm rim 29×2.25—3” (including 29+) 27.5×3.0—3.25”(27.5+) |
|
Package included |
1x frame 1x seatpost Clamp 1x rear thru axle |
Sn04 is a Full suspension bike frame specially designed by ICAN Cycling for mountain bike.
In the current Full suspension bike frame market, SN04 is one of the most cost-effective bike frames, which has excellent characteristics that attract the interest of a large number of racer.
Have you been looking at all those fantastic bikepacking stories featuring people riding full suspension fat bikes and travelling the world? You wish to be able to go on one of those adventures but feel you could never afford it? Step forward the ICAN SN04 frame.
This frame is the answer to your dreams. It is just the same as those brand name full suspension fat bike frames but does not have an oversize brand name sticker on the downtube. Without that sticker, you will now be able to enter the luxury world of full suspension fat bikes and have enough change left to go on an adventure.
Features
1× & 2×Drivertrains Compatible
This frame is compatible with both 1×and 2× drivertrain setups. A removable
direct mount front derailleur bracket allows for a clean 1× build.

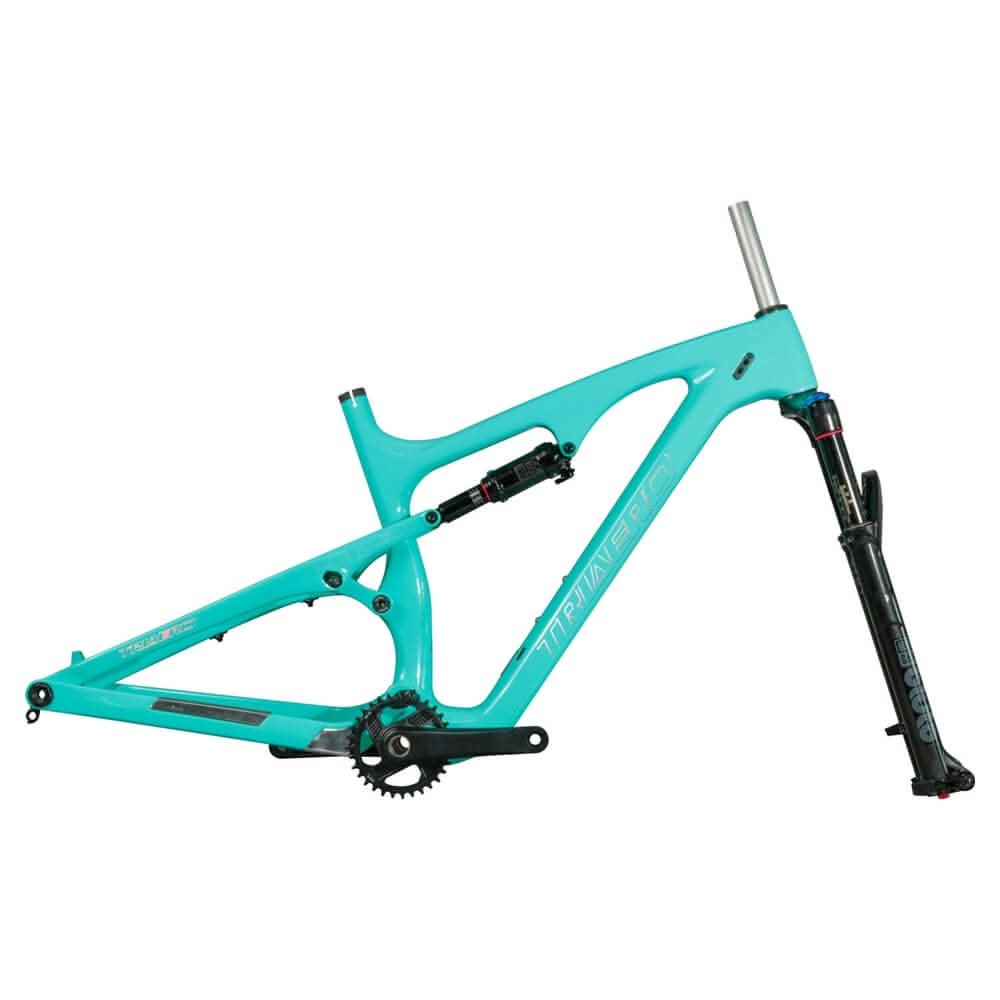

RockShox Bluto Suspension Fork Compatible120mm travel. Tapered steerer tube. 150×15mm thru-axle hub spacing, 74mm standard post mount fork.

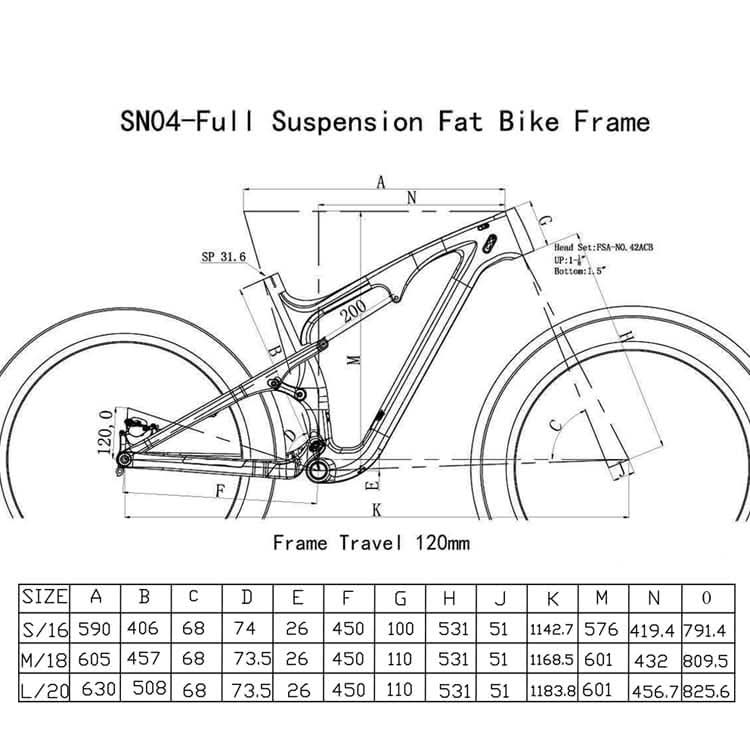

Frame Travel 120mm, Rear Shock 200mm Size
SN04 fat bike frame travel design as 120mm, use 200mm size rear travel, recommend Rockshox Manarch XX.200x51mm.
High-modulus Carbon Fiber Frame
This material offers improved stiffness, better vibration damping, excellent strength and weight savings compared to other materials.
This frame offers a 350g weight savings over the aluminum version.

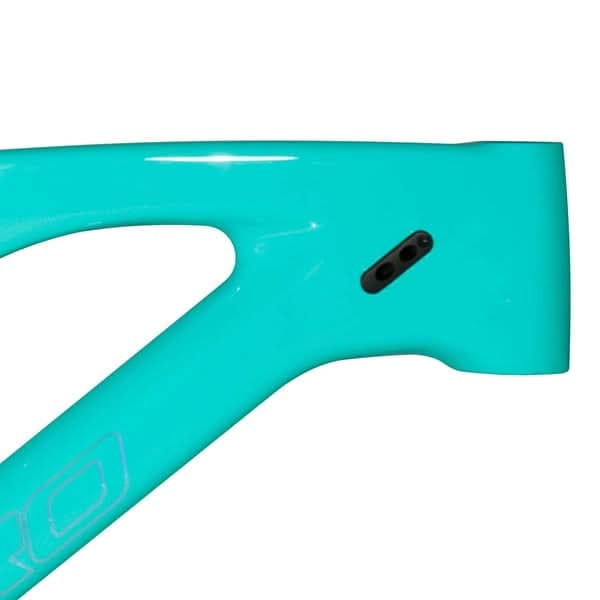

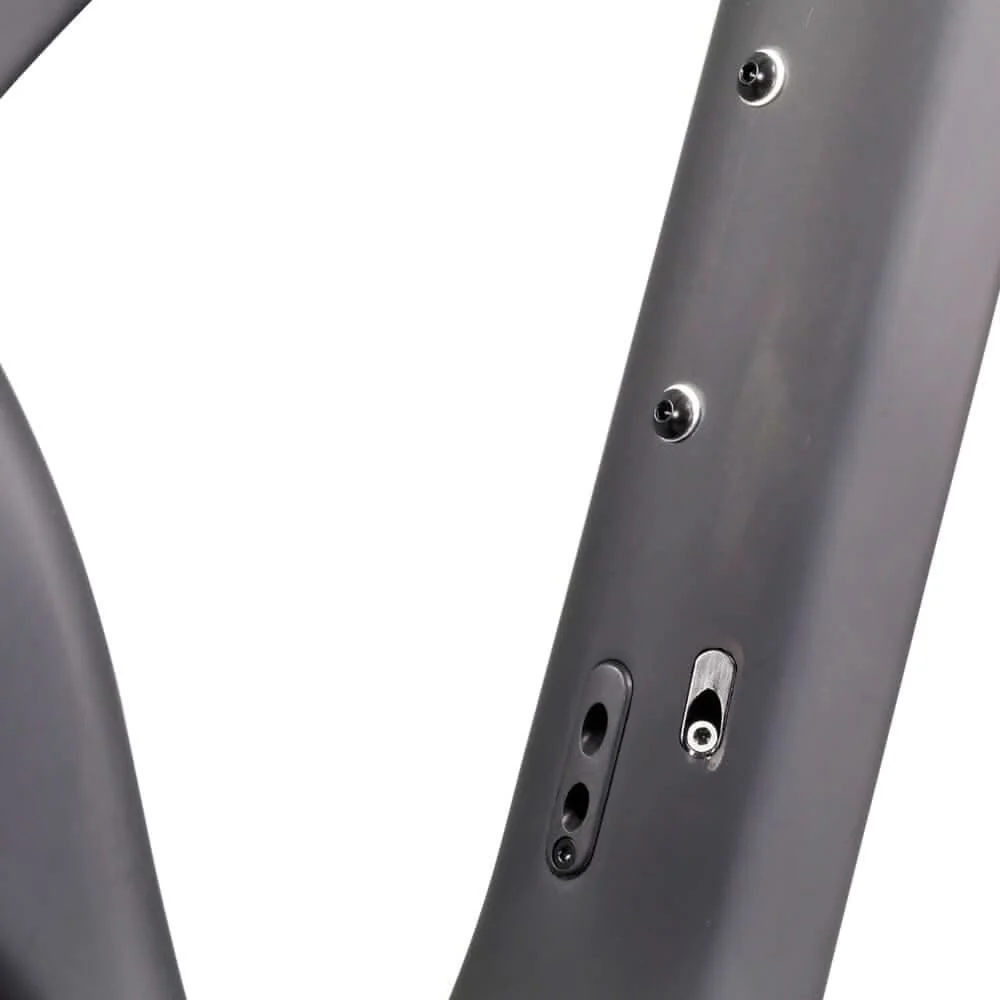

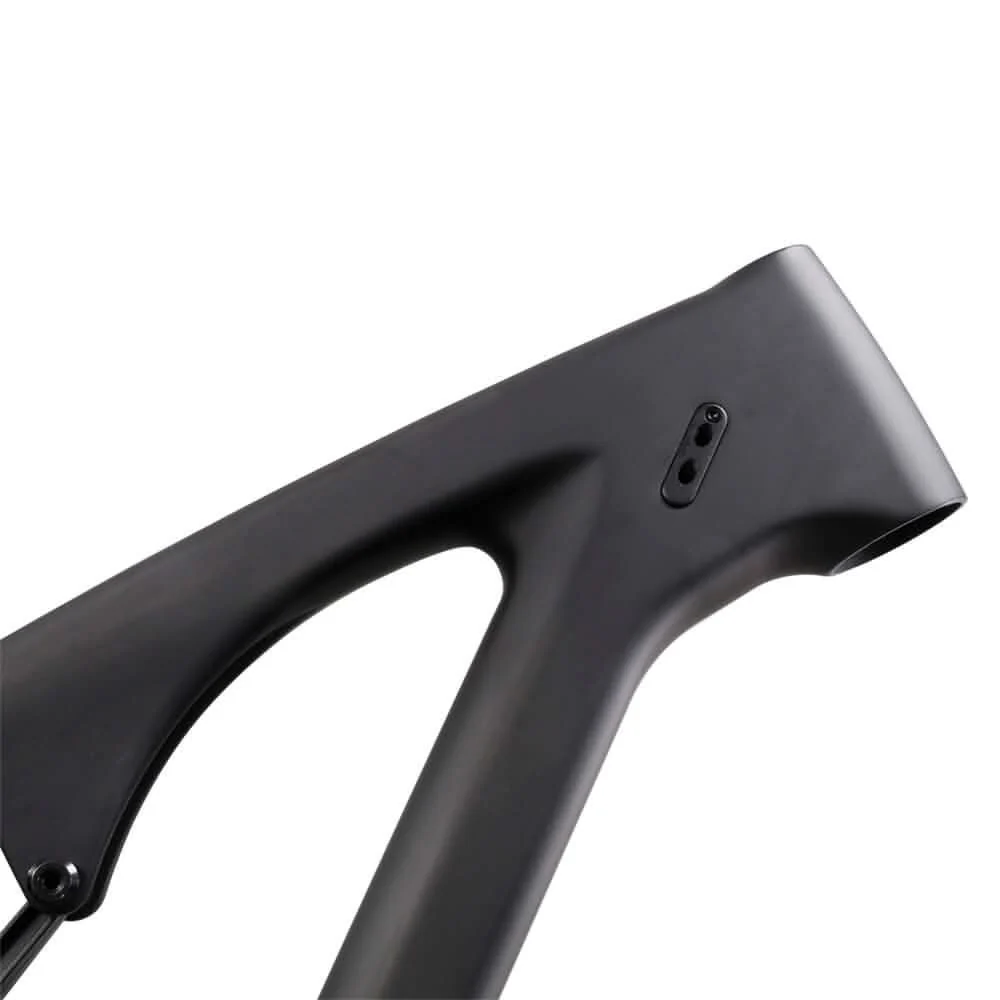

All Internal Cable Routing, Best Protection And Easy Maintenance
Frame design, hide the brake cable and shift cable inside the frame. This not only provides cables best protection and easy maintenance.
And reduce frame weight, maintaining a high quality and high standards

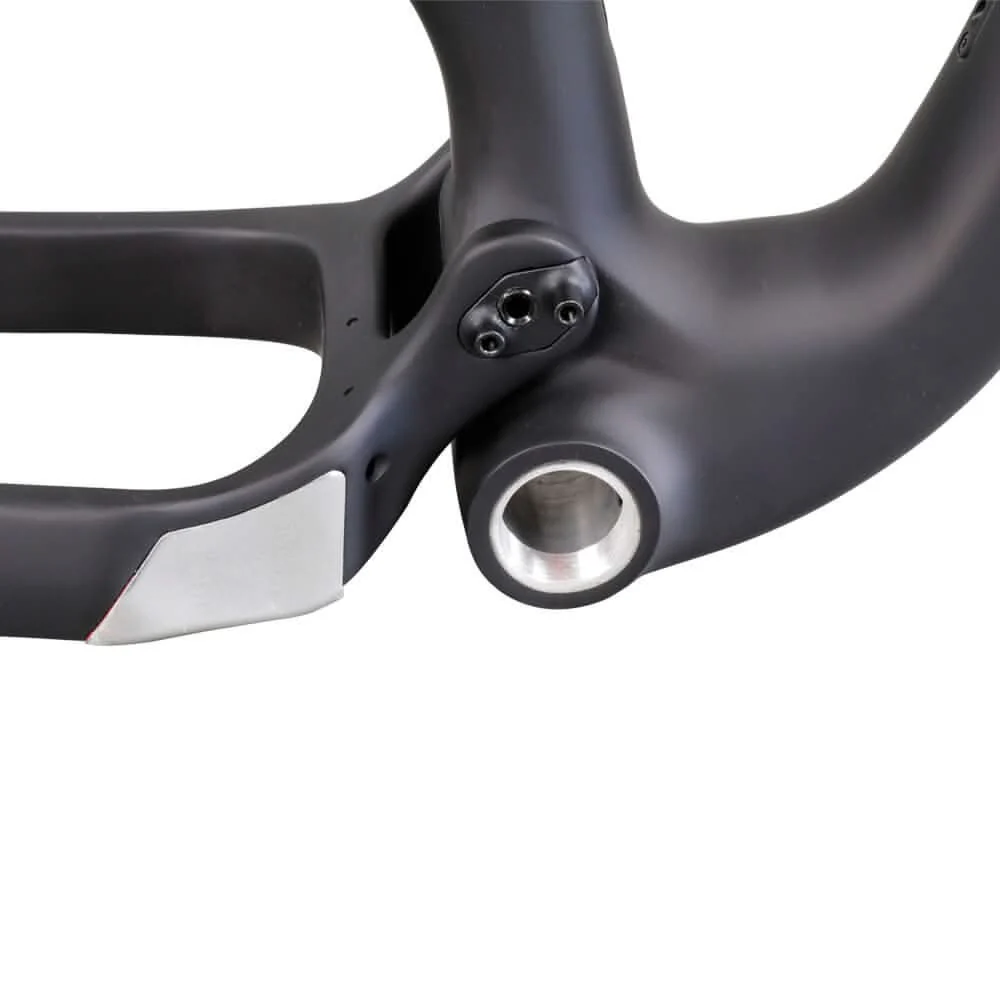

Chainstay Guard
Chainstay Guard let the chain do not touch the frame by accident.

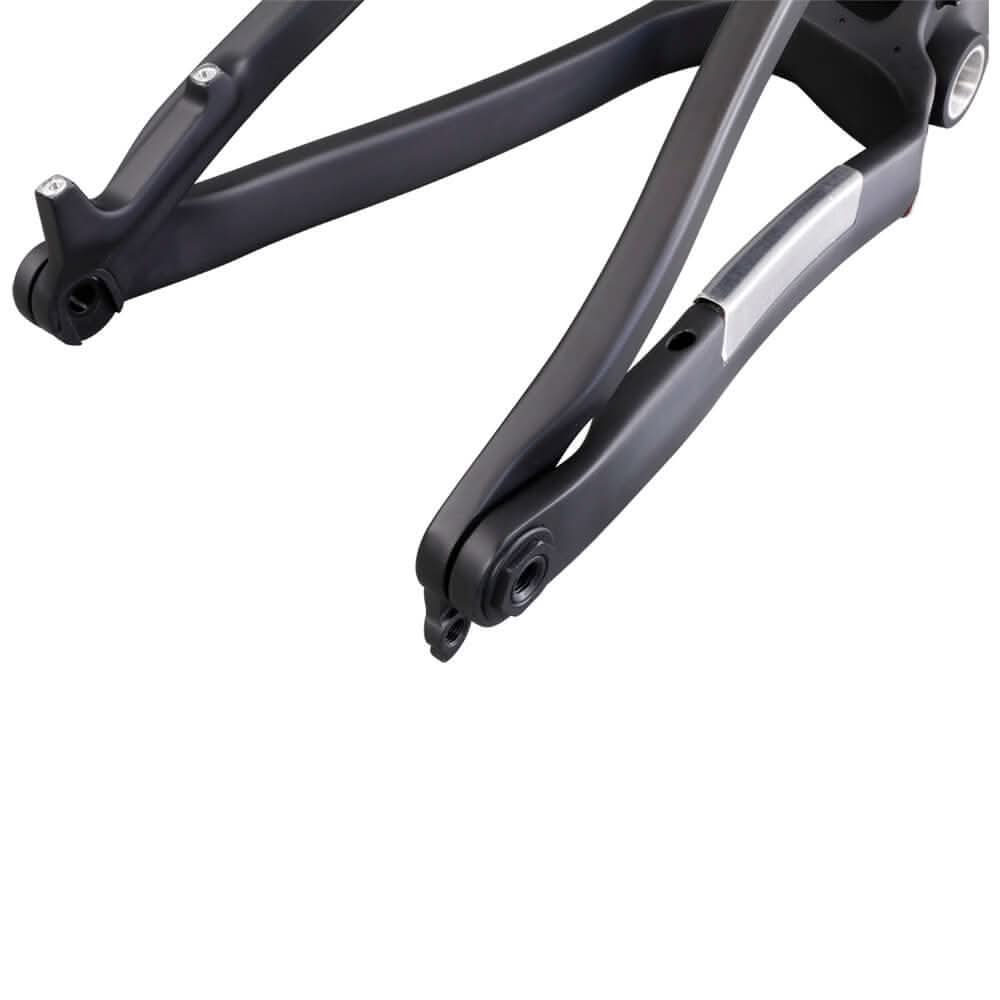

12x197mm Symmetrical Rear Spacing
Tapered Headtube
The modern standard for mountain bikes increases front-end frame and fork stiffness without adding significant weight.
Original: $725.00
-70%$725.00
$217.50Product Information
